Careium declares that your device is in compliance with applicable requirements in Regulation (EU) 2019/1782 regarding ecodesign requirements for external power supplies and Commission Regulation (EC) No. 1275/2008 / (EU) 2023/826 regarding ecodesign requirements for standby and off mode pursuant to Directive 2009/125/EC and/or Regulation (EU) 2024/1781 and corresponding UK Energy-Related Products Legislation.

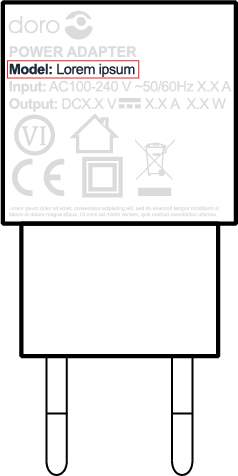

The full information regarding the ecodesign data is available below, using the model identifier of the external power supply and/or the product model name as available on the name plates.
S018BAM0900200 – External power supply
|
|
|
Manufacturer’s name or trade mark, commercial registration number and address |
Tenpao International. Room 10-11,6/F.,
|
Model identifier |
S018BAM0900200 |
Input voltage (VAC) |
100-240 |
Input AC frequency (Hz) |
50-60 |
Output voltage (VDC) |
9 |
Output current (A) |
2 |
Output power (W) |
18 |
Average active efficiency (%) |
86,64 |
Efficiency at low load (10%) (%) |
84,12 |
No-load power consumption (W) |
0,057 |
A150 – Eliza family of products
The Eliza family of products are networked equipment with high network availability (HiNA). The following data applies depending on the network interfaces available in the specific model
- Power consumption in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,10 W
- Power consumption in the condition of cellular networks (2G, 3G, 4G) and Wi-Fi enabled: Off mode 0,03 W, networked standby 2,10 W
- Power consumption in the condition of Wi-Fi enabled: Off mode 0,03 W, networked standby 1,87 W
- Wireless network ports can be deactivated through software configuration
